Needle Movement Station - FSN

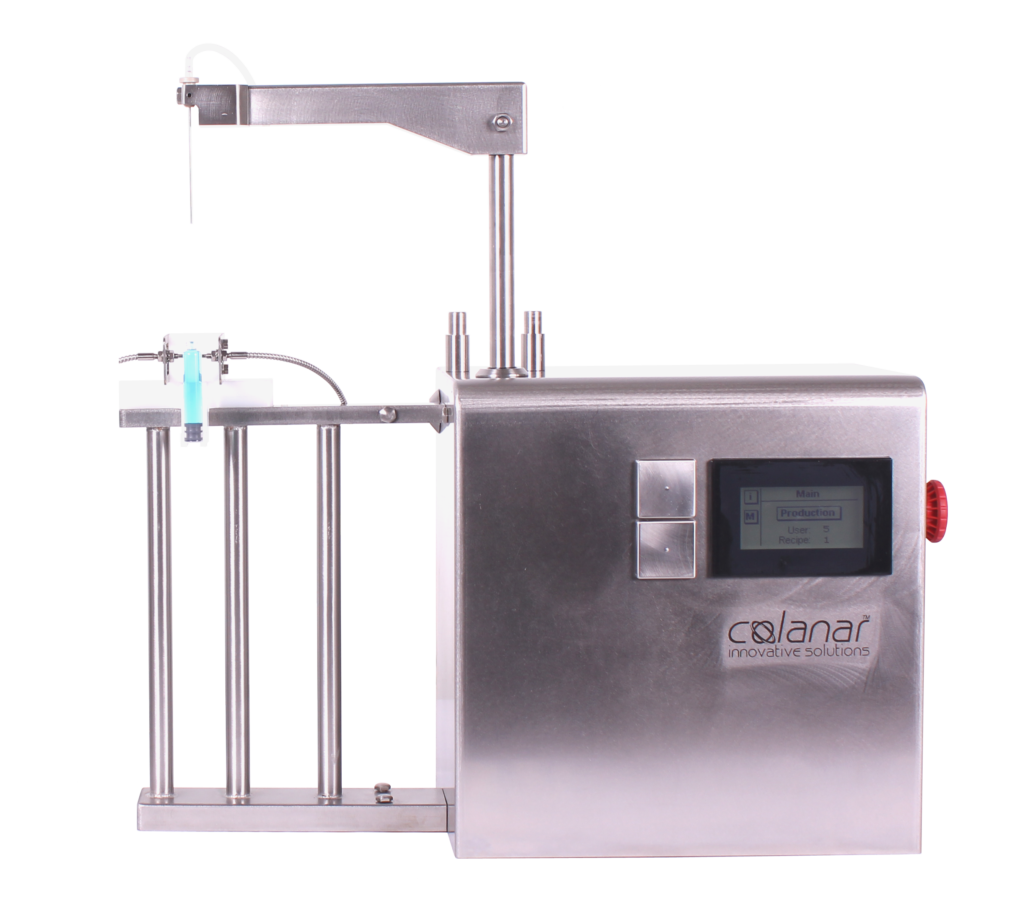

This benchtop needle movement station serves as an optional station in combination with COLANAR’s table top filling systems FSP and FSR or other filling machines. The needle movement station is controlled by a PLC and operated through the touch panel HMI. The servo drive system makes this machine capable of both high speed and accuracy. This filling system can be used for a variety of Pharma containers  such as vials, bottles, syringes, cartridges, etc.
The filling needle or nozzle dives rapidly into the container and the filling cycle starts when the needle has reached its lowest position. The needle lifts slowly during the filling cycle and maintains a constant distance between the needle tip and the liquid fill level in order to minimize splashing and foaming. This system is suitable for stand-alone applications in laboratories, as well as for the full integration into vial and syringe filling machines.

Technical Data

Output

up to 20 cycles / min

Range

max. 100 mm needle stroke

Finish

Stainless steel 316L and POM

Weight

Approx. 15 kg (33 lbs)

Dimensions

390 x 190 x 450 mm
