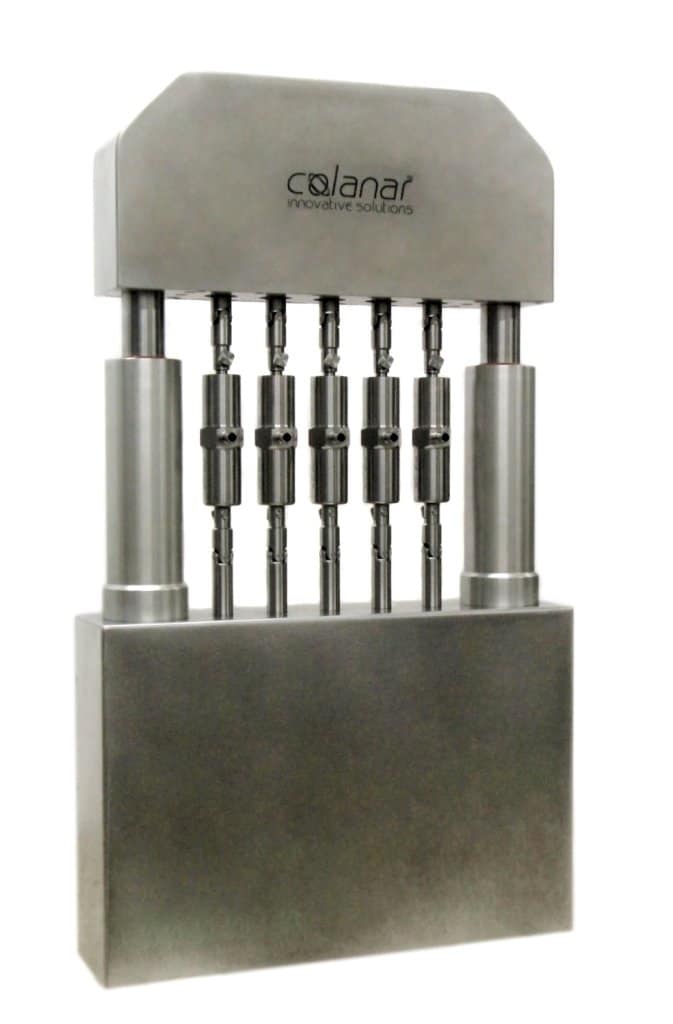

Rotary Piston Pump Filling System - FSR

The FSR rotary piston pump filling system has been developed specifically with pharmaceutical and biotech liquid filling applications in mind. It features an extremely high filling accuracy in combination with our FSD rotary piston pumps as well as a wash down stainless steel 316L exterior. The FSR filling system is controlled by a PLC and driven by precision servo drives. The touch screen interface is intuitive and guides the user through the setup and operation with ease.

Several versions and configurations of the FSR piston pump filling system are available:

Benchtop Models

For use in laboratories

Pump Carts

For retrofitting existing filling lines with accurate and reliable filling system

Integrated Versions

For full integration into OEM filling machines

Technical Data

Output

up to 60 fills / min

Range

50 μl to 50 ml

Material

Stainless steel 316L

Pump Sizes

FSD 10
FSD 20
FSD 30

up to 1.5 ml
up to 10 ml
up to 50 ml

Benefits and Features

  • All stainless steel exterior, suitable for Pharma sterilization procedures
  • Specifically designed for our COLANAR FSD rotary piston pumps
  • Extremely high dosing accuracy
  • Integrated PLC with Touch Screen and servo drives
  • Prepared for full integration into pharmaceutical liquid filling machines
  • Integrated drip retraction (“suck back”)
